Product Introduction

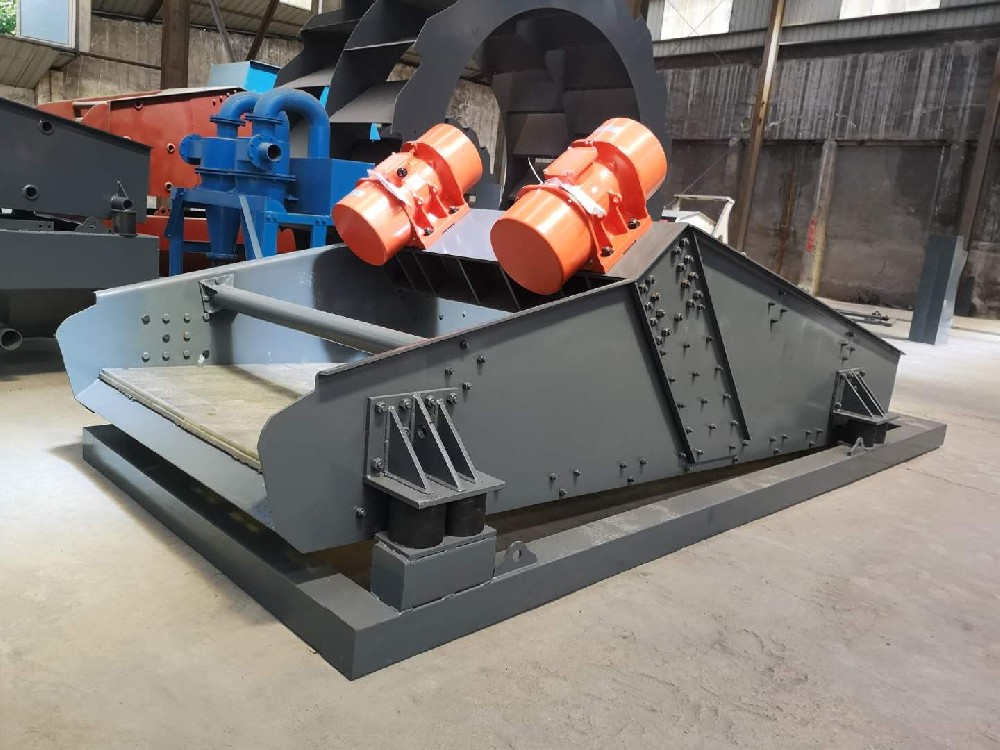

For the mineral processing industry, since the application of vibrating dewatering screens, many industries that require screening and dewatering have been solved, such as sand and gravel plants, coal preparation plants, and mineral processing plants. The dewatering screen adopts dual motor self synchronization technology, universal eccentric block, and adjustable amplitude vibrator. Mainly composed of screen box, exciter, support system, and motor. Workflow: The sand water mixture enters the cleaning box, is separated by an impeller separator, and then enters the lower dehydration screen for dehydration treatment. The wastewater overflowing from the cleaning box (containing a large amount of fine sand, mud, dust and other impurities).

Advantages and characteristics

1. The material of the dehydration screen mesh is polyurethane, which is resistant to impact, low temperature, wear, chemical corrosion, self-lubricating, and absorbs impact energy. Its impact resistance is the top choice among plastics, and its wear resistance is better than materials such as polytetrafluoroethylene, nylon, and carbon steel.

2. The vibration motor of the dewatering screen is easy to replace, and the rubber spring on the base is used for shock absorption, so that the amplitude is not large and the slow vibration can be completely removed.

3. The dewatering screen can be customized according to production capacity and moisture content. The side panels of the machine body have reinforced plates, the bottom is equipped with supports, and the bottom is marked with horizontal bars. The discharge port is supported by triangular steel plates, and the plate thickness is thick

4. The vibration motor is fixed with high-strength bolts, and the bottom spring is a rubber spring. The quality of the spring will affect the service life of the vibration motor. The fixed density of the sieve plate is high, and there are reinforcing ribs in the sieve plate.

5. After welding, the welder will strictly prevent welding holes and support the bottom with channel steel.

6. In addition, the sieve holes can be adjusted as needed, the equipment has low noise, and the dehydration effect is good.

7. Before shipment, the staff will debug it to ensure that the vibration motor is functioning properly and the exciter is running well, ensuring the quality of the factory products for customers.

operational principle

The electric motor drives the eccentric block of the exciter to rotate at high speed through a triangular belt, which excites the screen box to produce a certain amplitude of circular motion. The material on the screen is subjected to the impulse transmitted by the screen box on the inclined screen surface, resulting in continuous throwing motion. During the process of the material meeting the screen surface, particles smaller than the sieve hole are allowed to pass through the screen, thus achieving classification.
